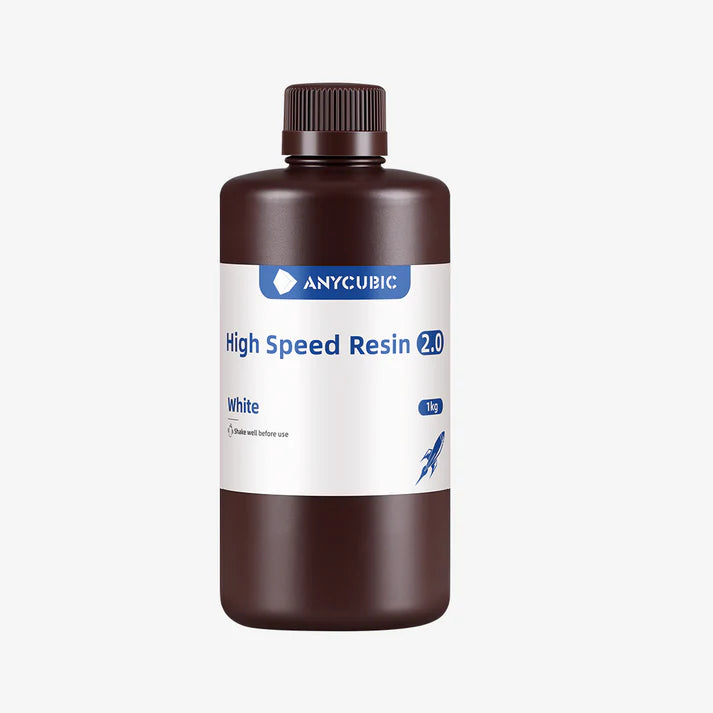

Anycubic High Speed Resin 2.0

Accelerate Your Creativity

The Anycubic High Speed Resin 2.0 has a viscosity that is 50% lower compared to regular resin. This reduced viscosity helps with quicker heat dissipation during platform movements, which prevents overheating and facilitates fast reflow. When printing with the Anycubic Photon Mono M7 Pro, the minimum time to print a single layer at a height of 0.1mm is just 2.11 seconds, making it 21.56% faster than using standard resin. Additionally, the maximum printing speed is 170mm/h at the same 0.1mm layer height, which is 30.77% faster than with regular resin.

Resin Parameters

Wavelength	365-405nm	Elongation at Break	16-20%
Density	1.14g/cm³	Flexural strength	52-65MPa
Viscosity	75-85 cPimPa·s	Felxural modulus	1700-3300 MPa
Surface Hardness	83-85D	Tensile Strength	37-47 MPa
Bottom exposure time	15-25s	Normal Exposure	1.5-2.8s
Recommended Printing Temperature	≥20℃	Shelf Life	1.5Years
Resin wash	Wash time more 3mins with 95°isopropyl alcohol	Curing Method	3mins under UV light

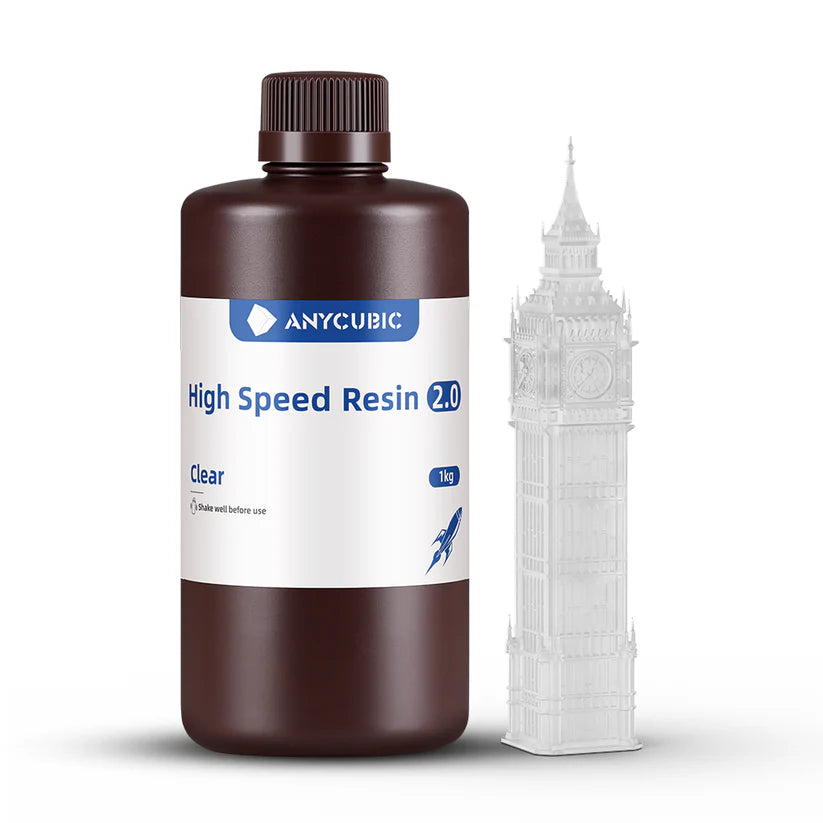

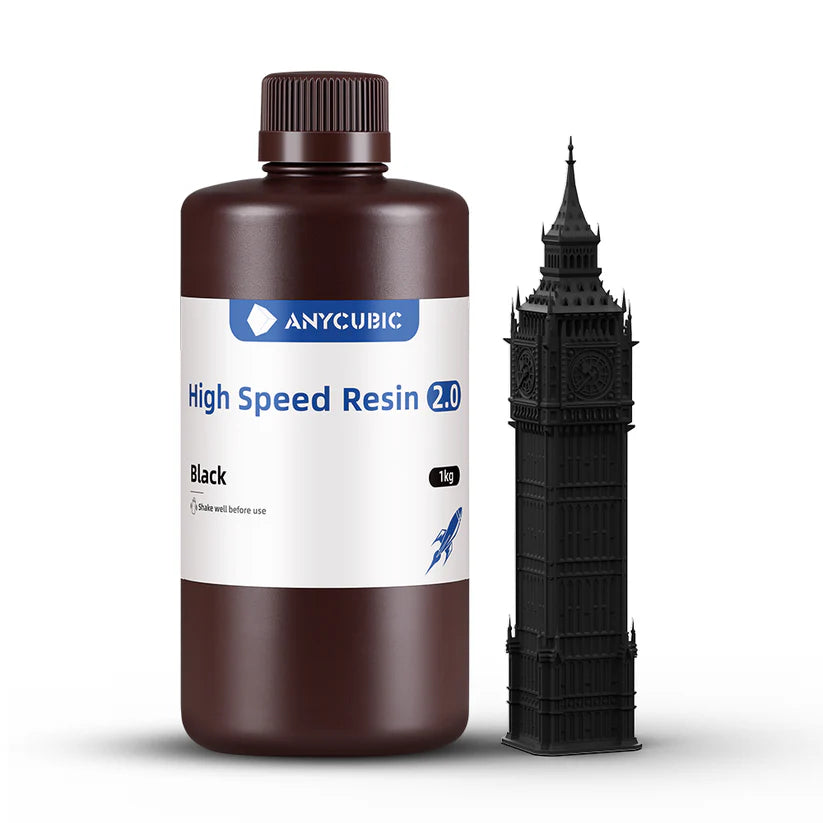

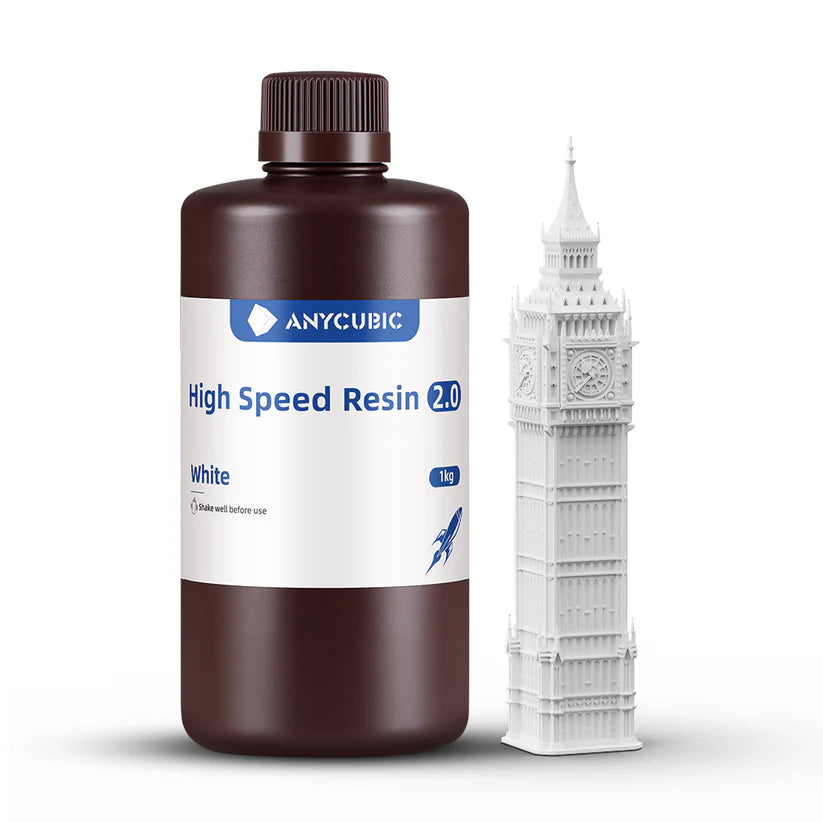

Model Print

Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Off Time	Bottom Exposure Time	Bottom Layers	Anti-alias	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.1mm	1.4s	0.5s	15s	3	1	4mm	15mm/s	15mm/s
Photon Mono M5s Pro	0.1mm	1.9s	0.5s	15s	5	1	3mm	20mm/s	20mm/s
Photon Mono M5s	0.1mm	1.9s	0.5s	15s	5	1	3mm	20mm/s	20mm/s
Photon Mono M5	0.1mm	2s	0.5s	15s	5	1	5mm	6mm/s	6mm/s
Photon Mono X 6Ks	0.1mm	2.5s	0.5s	15s	5	1	6mm	4mm/s	6mm/s
Photon Mono 2	0.1mm	2.5s	0.5s	18s	5	1	5mm	4mm/s	6mm/s
Photon Mono M3 Max	0.1mm	2.8s	0.5s	25s	6	1	8mm	4mm/s	4mm/s
Photon Mono X2	0.1mm	2.5s	0.5s	18s	5	1	6mm	4mm/s	6mm/s
Photon M3 Premium	0.1mm	2.5s	0.5s	25s	5	1	6mm	6mm/s	6mm/s
Photon X 6K	0.1mm	2s	0.5s	18s	6	1	6mm	4mm/s	6mm/s
Photon Mono 4K	0.1mm	2s	0.5s	25s	6	1	5mm	4mm/s	6mm/s
Photon D2	0.1mm	2.5s	0.5s	18s	5	1	5mm	2mm/s	3mm/s
Photon M3 Premium	0.1mm	2.5s	0.5s	25s	5	1	6mm	6mm/s	6mm/s
Photon M3	0.1mm	2s	0.5s	18s	5	1	5mm	4mm/s	6mm/s
Photon M3 Plus	0.1mm	1.5s	0.5s	18s	6	1	6mm	6mm/s	6mm/s

Recommendation Index

Improved toughness,more resistant to bending

Color Type

Instructions for Use

(1) Before use:
Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves; ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.

(5)Wastewater post-process:

A.Do not discharge wastewater directly into the sewer to avoid contaminating groundwater

B.Heat the wastewater,let most of the water evaporate, and then discard the residue after curing by curing machine and sunlight.

Precautions

The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light
to avoid high temperature or sunlight.

Suggested operating temperature is 18-35℃, and a low temperature may affect the printing effect, thus, the
resin can be properly preheated before use (not more than 60°C).

If the resin pigment settles, it can be used after stirring or shaking.

In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.

To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.

To ensure the ideal performance of the curable material it is necessary to control the intensity and time of the light source after curing.Therefore,

The following steps are recommended:

(1)The intensity of mercury lamp or LED light source is 5-10mW/m2,and the duration is no more than 1hour (self-regulation):

(2)The exposure time in the sun (summer)is around 1 hour;

(3)Proximity or long -term exposure under strong light sources such as high power high-pressure mercury lamps is prohibited

(4)It is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.

(5)To avoid yellowing caused by long-term curing of High Clear Resin, please reduce the exposure time by half compared with other resin colors.

(6)Black resin may appear partially transparent in thin walls (<0.5mm), so the greater thickness can achieve better color effects.

PS: Material properties will vary depending on the molding equipment. post-curing method
