Mercury XS Bundle Washing and Curing

250.000 JD

Dual function of washing and curing Largewashing volume Convenient and Safe Operation Handheld UV Lamp 360° all-round exposure Anti-UVShade Hood Dual function of washing and curing ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D...

Categories : Home page, Resin Accessories, Resin Printers and Accessories

Description
Review

Dual function of washing and curing

Large
washing volume

Convenient and Safe Operation

Handheld UV Lamp

360° all-round exposure

Anti-UV
Shade Hood

Dual function of washing and curing

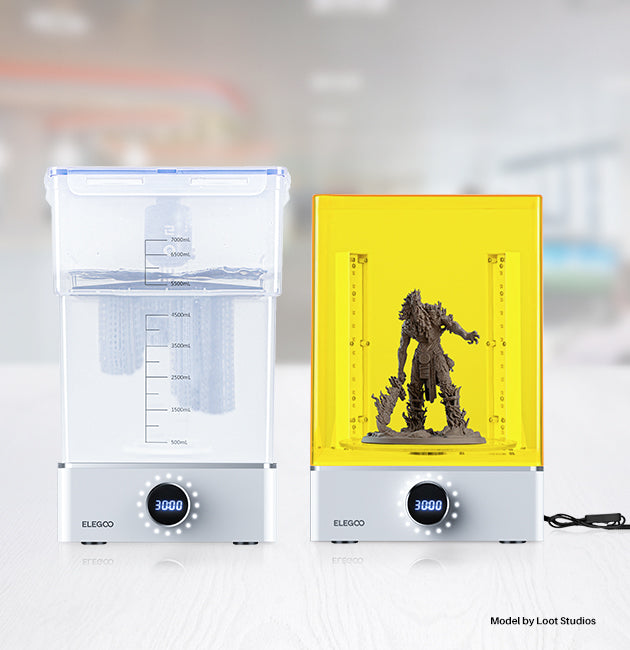

ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.

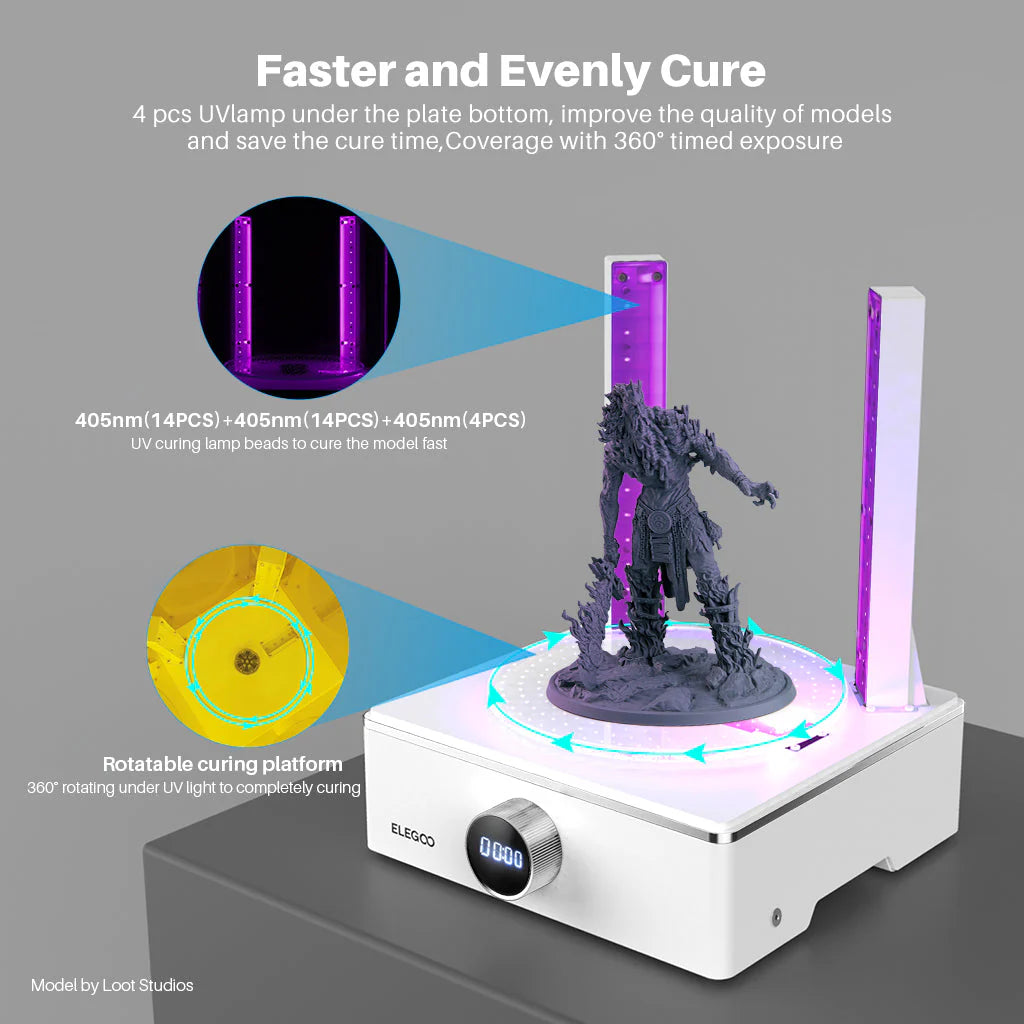

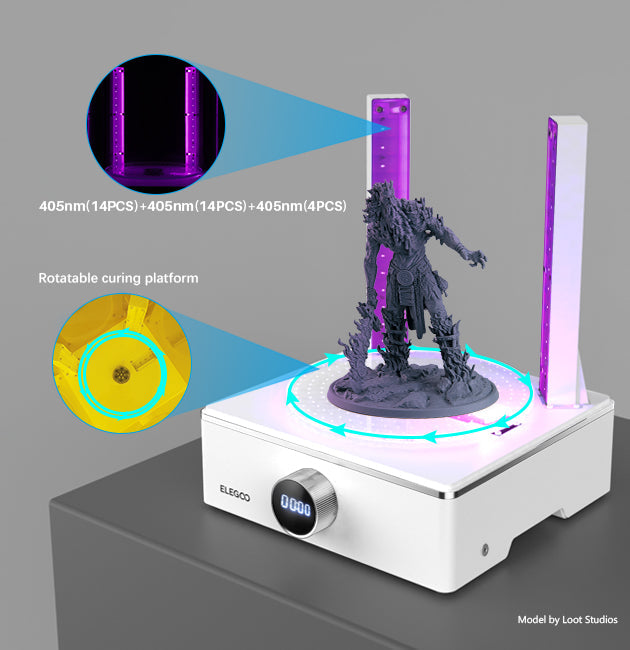

360° all-round exposure

2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles.

A handheld UV lamp

Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.

Large washing volume

With an 7000ml large capacity sealed water tank, you can directly wash large models printed or clean parts in batches, which offers substantial time savings and improves your productivity.

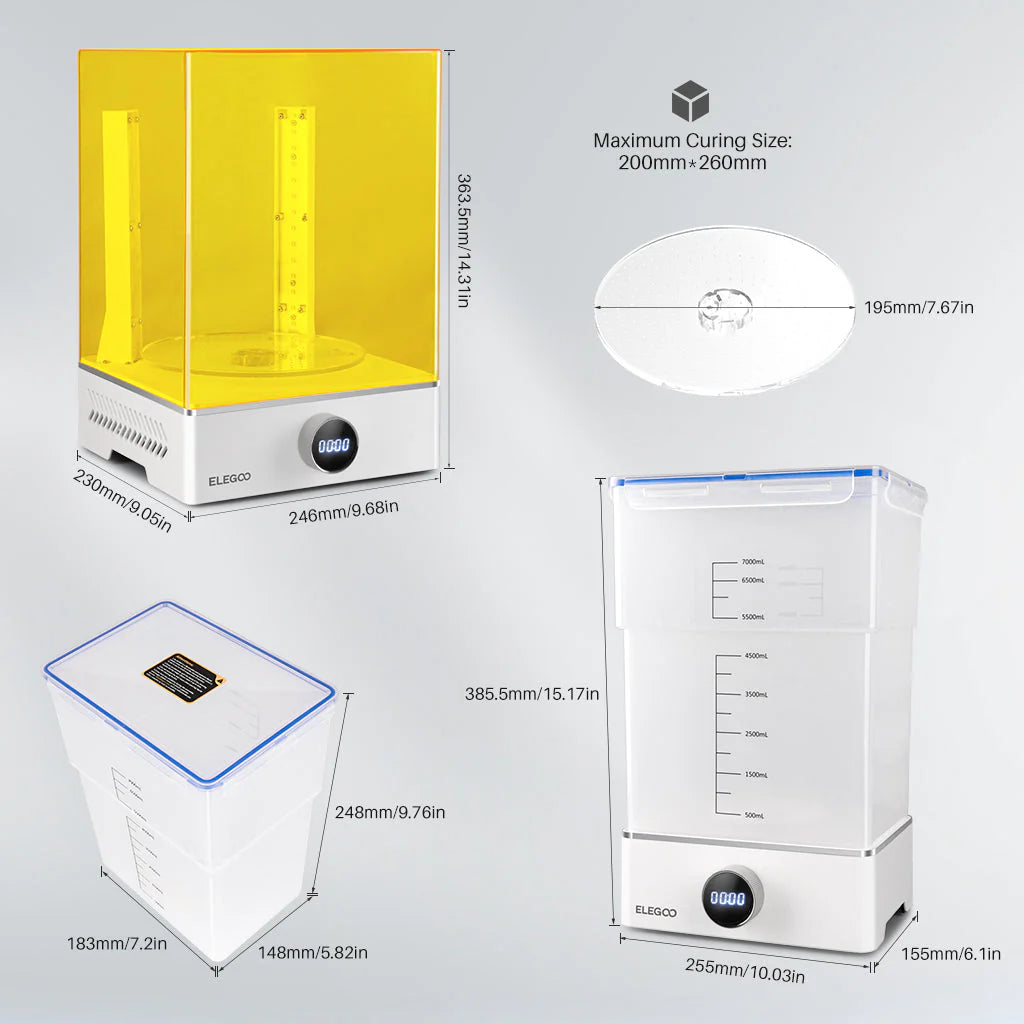

Friendly Tips: Kindly be aware that for the Saturn 4 series and Jupiter series, the build platform must be removed for cleaning, which is different from other applicable models. For other models, please refer to the MAXIMUM WASH VOLUME in the specification section and assess whether the platform needs to be removed for cleaning based on the model's height.

UV Protection Cover

The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process. A safety option automatically switches off the UV lights when you remove the cover.

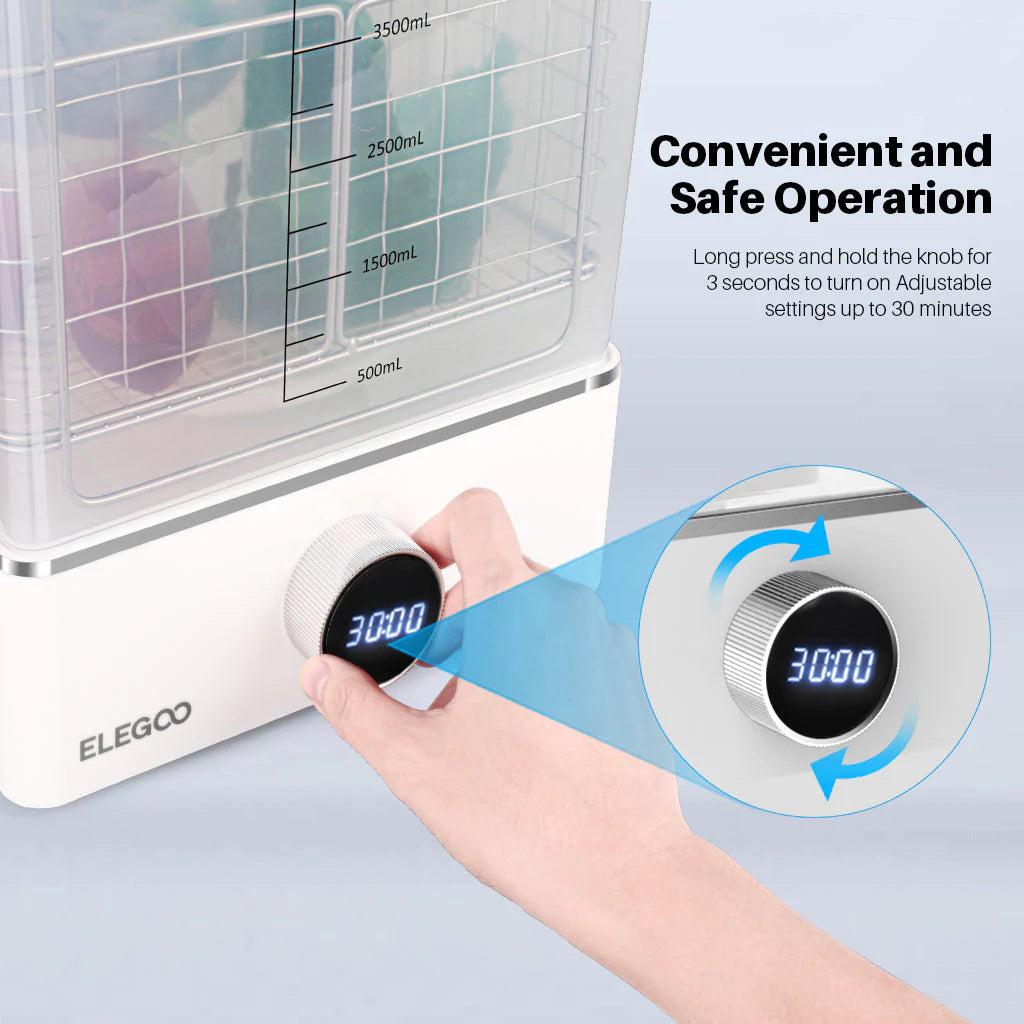

Convenient Operation Settings

Simply press and hold the knob for 3 seconds to turn on, with a neatly interface for easily operating the washing and curing functions. The settings time can be adjusted for maximum 30 minutes according to your needs.

Operation Instructions

1.

After the model is printed, please clean and blow-dry the model before putting it into the machine.

2.

If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.

3.

Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.

4.

Please do not use it for more than 40 minutes at a time to avoid overheating

5.

Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.

6.

Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
