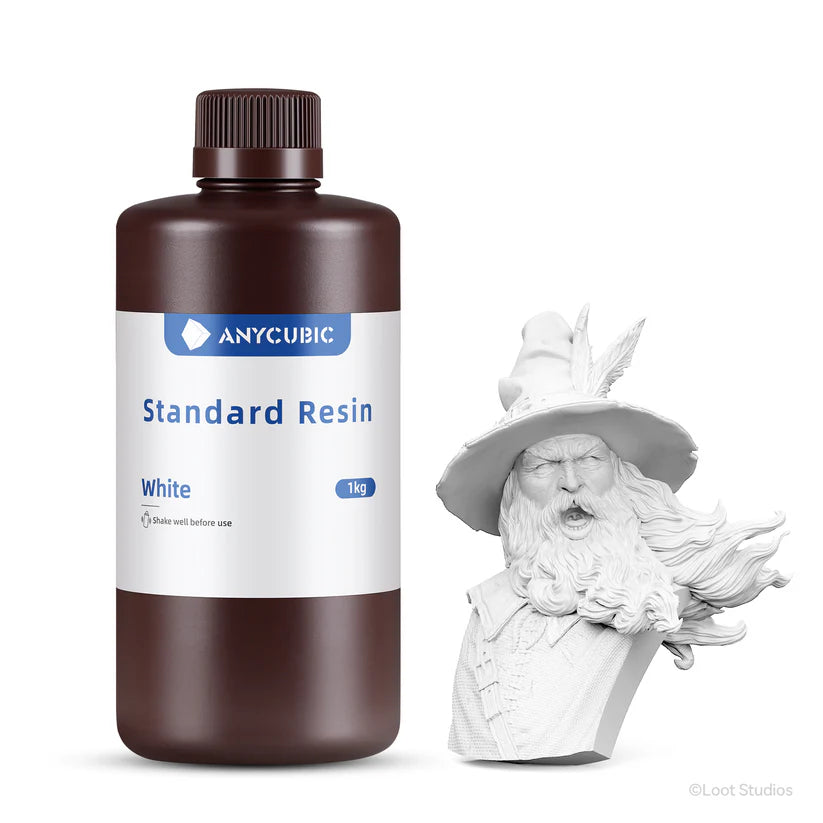

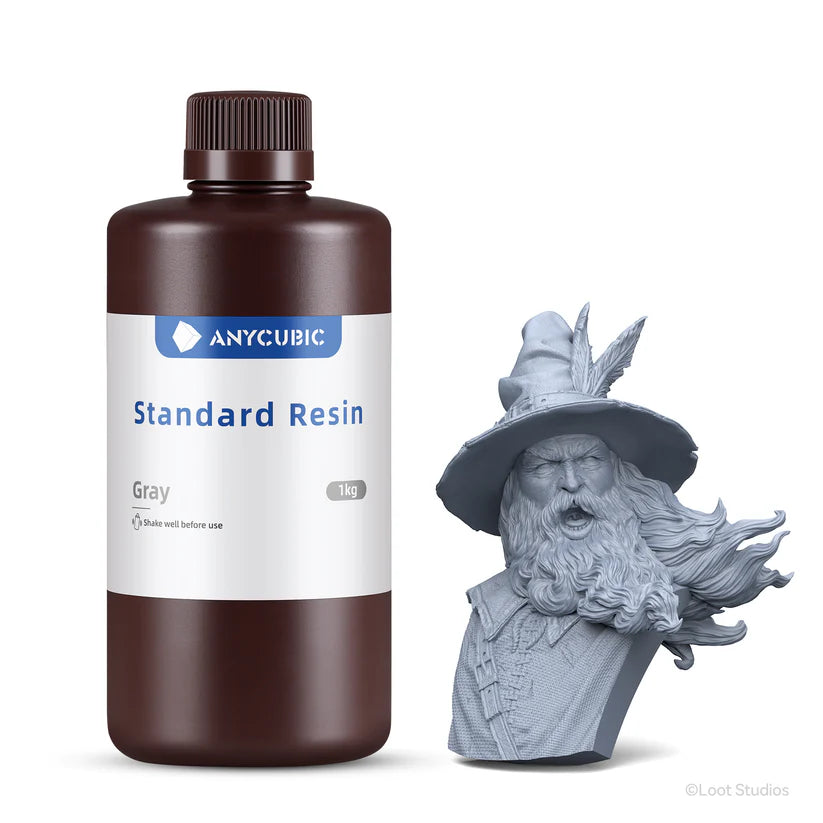

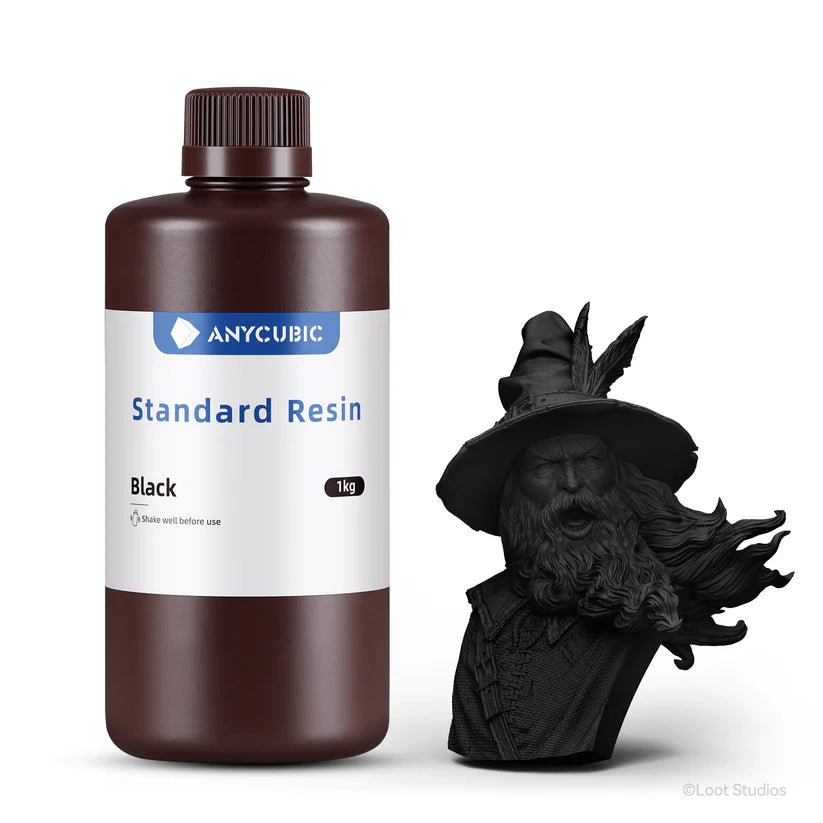

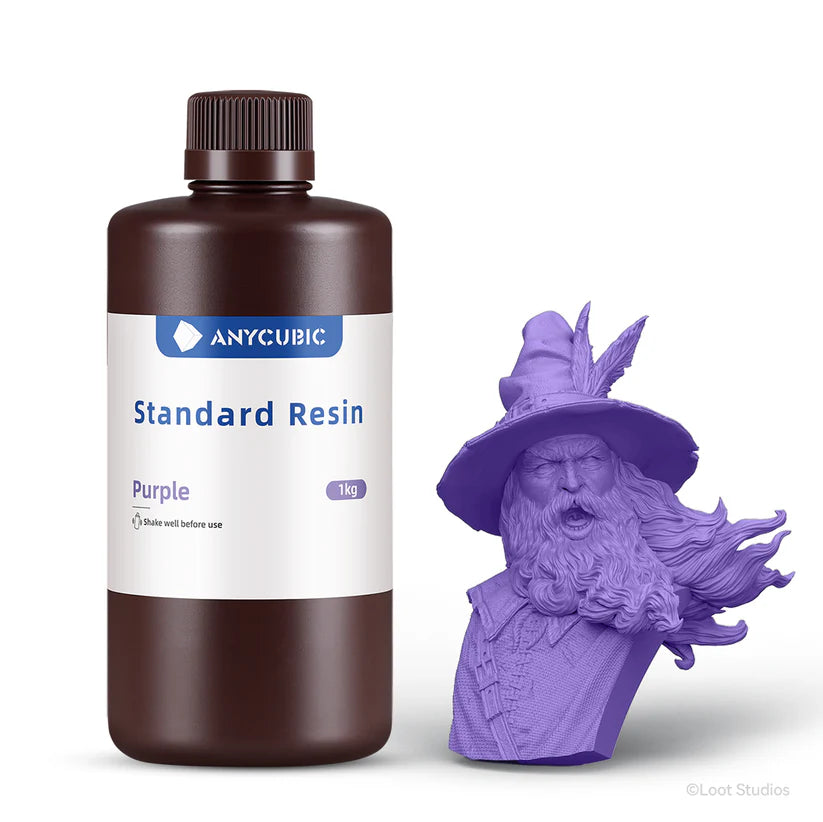

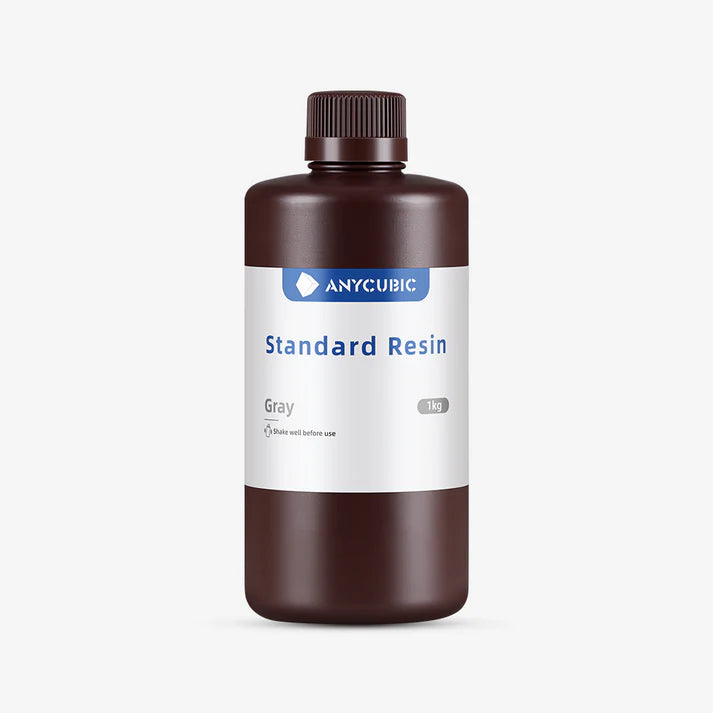

Anycubic Standard Resin v2

44.000 JD

Highlight Ideal Choice for Entry-Level Users: Anycubic Standard Colored UV Resin follows a classic formula and achieves a balanced performance in printing precision, hardness, and fluidity.   High Precision and Fast Printing: This resin not only provides strong molded parts with minimal shrinkage but also enhances print speed by reducing curing...

Size

Color

Highlight

  • Ideal Choice for Entry-Level Users: Anycubic Standard Colored UV Resin follows a classic formula and achieves a balanced performance in printing precision, hardness, and fluidity.



  • High Precision and Fast Printing: This resin not only provides strong molded parts with minimal shrinkage but also enhances print speed by reducing curing time, thereby improving the overall efficiency of LCD 3D printers.



  • Strong Adhesion During Printing, Easy Removal Afterwards: The resin offers a high success rate and precision while minimizing adhesion and release force. This allows models to be easily removed from the forming platform. Its low viscosity also simplifies the cleaning process for both machines and models.



  • Stable Performance and Wide Compatibility: This resin is stable and easy to store in various climatic conditions, overcoming common issues such as moisture sensitivity and environmental corrosion found in other resins. It is particularly effective when used with Anycubic 3D resin printers and is sensitive to UV wavelengths between 365 and 410 nm.



  • User Guide: For optimal performance, shake the resin well before use and store it sealed and away from light after use. To ensure your safety, please wear gloves to prevent skin contact and maintain good ventilation in the workspace.

Resin Parameters

UV wavelength 365-405nm Elongation at break 12-16%
Density 1.13g/cm³ Molding shrinkage 4.5-5.5%
Viscosity 200-230 cP·mPa·s Flexural strength 50-60 MPa
Hardness 84-86 HS Flexural modulus 1400-1600 MPa
Tensile strength 40-50 MPa Conservation period 18 months

Model Print

Recommended Printing Parameters

Printer Model Layer Thickness Exposure Time Light-Off Time Bottom Exposure Time Bottom Layer Anti-Aliasing Level Z Lift Distance Z Lift Speed Z Retract Speed
Photon Mono M7 Pro 0.05mm 2s 0.5s 25s 4 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro (Normal printing mode) 0.05mm 3.6s 0.5s 30s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro (Fast printing mode) 0.1mm 3.8s 0.5s 30s 5 1 5mm 20mm/s 20mm/s
Photon Mono M5s (Normal printing mode) 0.05mm 2.8s 0.5s 25s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s (Fast printing mode) 0.1mm 3.2s 0.5s 25s 4 1 5mm 20mm/s 20mm/s
Photon Mono M5 0.05mm 2.8s 0.5s 25s 5 1 8mm 6mm/s 6mm/s
Photon M3 Max 0.05mm 3s 2.5s 50s 6 1 10mm 2mm/s 3mm/s
Photon Mono X 6Ks 0.05mm 2.5s 0.5s 20s 5 1 8mm 2mm/s 3mm/s
Photon Mono X2 0.05mm 2.5s 0.5s 25s 5 1 8mm 2mm/s 3mm/s
Photon Mono 2 0.05mm 2.5s 1s 25s 5 1 6mm 4mm/s 6mm/s
Photon D2 0.05mm 2.8s 1s 30s 6 16 5mm 2mm/s 3mm/s
Photon M3 Plus 0.05mm 1.5s 0.1s 23s 3 1 4mm 6mm/s 6mm/s
Photon M3 0.05mm 2s 0.5s 23s 4 1 6mm 3mm/s 4mm/s
Photon M3 Premium 0.05mm 2s 0.5s 25s 2 1 8mm 6mm/s 6mm/s
Photon Ultra 0.05mm 2s 1s 35s 4 4 5mm 2mm/s 2mm/s
Photon Mono X 0.05mm 2s 0.5s 28s 4 1 8mm 2mm/s 3mm/s
Photon Mono 4K 0.05mm 2s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon Mono X 6K 0.05mm 2s 0.5s 23s 6 1 8mm 2mm/s 3mm/s
Photon Mono SQ 0.05mm 2.3s 0.5s 23s 6 1 5mm 3mm/s 3mm/s
Photon Mono SE 0.05mm 1.5s 0.5s 30s 6 1 6mm 4mm/s 6mm/s
Photon Mono 0.05mm 2s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon S 0.05mm 8s 1s 60s 6 1 6mm 3mm/s 3mm/s

Instructions for Use

(1) Before use:
Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves;ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.

Precautions

  1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
  2. Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
  3. If the resin pigment settles, it can be used after stirring or shaking.
  4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
  5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
  6. To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing.Therefore, the following steps are recommended:
    (1) The intensity of mercury lamp or Led light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
    (2)The exposure time in the sun (summer) is around 1 hour;
    (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury
    lamps is prohibited.
    (4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive
    material.
